| MODEL | Lifting Height m | Rope Reeving | Traversing Speed m/min | |||||||||
| R2800 | R3200 | R3600 | R4000 | R4500 | R5000 | 10 | 15 | 20 | 30 | 40 | ||
| db6304 | 50 | 59 | 68 | 76 | 87 | 99 | 35.5×4 | T3 | T4 | T5 | T6 | T7 |
| db6308 | 24.9 | 29.4 | 33.8 | 38.2 | 43.7 | 49.3 | 35.5×8 | T5 | T6 | T7 | T8 | T9 |
| db6312 | 16.6 | 19.6 | 22.5 | 25.5 | 29.2 | 32.8 | 35.5×12 | T6 | T7 | T8 | T9 | T10 |
| db6316 | 12.5 | 14.7 | 16.9 | 19.1 | 21.9 | 24.6 | 35.5×16 | T7 | T8 | T9 | T10 | T11 |

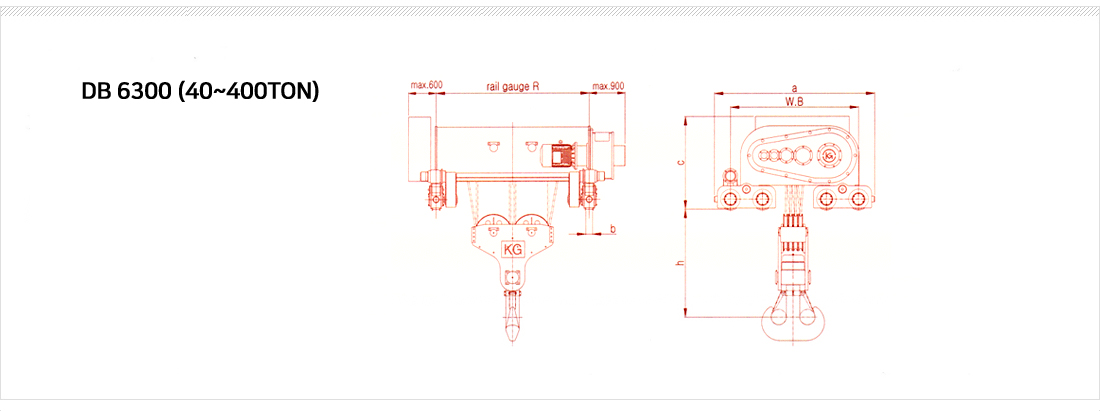

| MODEL | Capacity | FEM ISO | Hoisting Speed m/min | Dimensions mm | ||||||||
| D4 | D5 | D6 | D7 | D8 | a | b | c | h | WB | |||
| db6304 | 100 | 1Bm M3 | 1.9 | 2.8 | 3.8 | 4.5 | 5.6 | 4000 | min46 | max.1900 | 1950 | 3300 |
| 80 | 1Am M4 | 2.3 | 3.5 | 4.7 | 5.7 | 6.9 | 1900 | |||||
| 63 | 2m M5 | 3.0 | 4.4 | 6.0 | 7.2 | 8.8 | 1850 | |||||
| 50 | 3m M6 | 3.7 | 5.6 | 7.6 | 9.1 | 11.1 | 1900 | |||||
| 40 | 4m M7 | 4.7 | 6.9 | 9.5 | 11.4 | 13.9 | 1950 | |||||
| db6308 | 200 | 1Bm M3 | 0.9 | 1.4 | 1.9 | 2.3 | 2.8 | 3400 | min84 | 2000 | 2850 | |
| 160 | 1Am M4 | 1.2 | 1.7 | 2.4 | 2.8 | 3.5 | 2550 | |||||
| 125 | 2m M5 | 1.5 | 2.2 | 3.0 | 3.6 | 4.4 | 2500 | |||||
| 100 | 3m M6 | 1.9 | 2.8 | 3.8 | 4.5 | 5.6 | 2550 | |||||
| 80 | 4m M7 | 2.3 | 3.5 | 4.7 | 5.7 | 6.9 | 2600 | |||||
| db6312 | 300 | 1Bm M3 | 0.6 | 0.9 | 1.3 | 1.5 | 1.9 | 3600 | min84 | 2800 | 3000 | |
| 250 | 1Am M4 | 0.7 | 1.1 | 1.5 | 1.8 | 2.2 | 2750 | |||||
| 200 | 2m M5 | 0.9 | 1.4 | 1.9 | 2.3 | 2.8 | 2700 | |||||
| 150 | 3m M6 | 1.2 | 1.9 | 2.5 | 3.0 | 3.7 | 2750 | |||||
| 125 | 4m M7 | 1.5 | 2.2 | 3.0 | 3.6 | 4.4 | 2800 | |||||
| db6316 | 400 | 1Bm M3 | 0.5 | 0.7 | 0.9 | 1.1 | 1.4 | 3800 | min84 | 3000 | 3150 | |
| 320 | 1Am M4 | 0.6 | 0.9 | 1.2 | 1.4 | 1.7 | 2950 | |||||
| 250 | 2m M5 | 0.7 | 1.1 | 1.5 | 1.8 | 2.2 | 2900 | |||||
| 200 | 3m M6 | 0.9 | 1.4 | 1.9 | 2.3 | 2.8 | 2950 | |||||
| 160 | 4m M7 | 1.2 | 1.7 | 2.4 | 2.8 | 3.5 | 3000 | |||||
