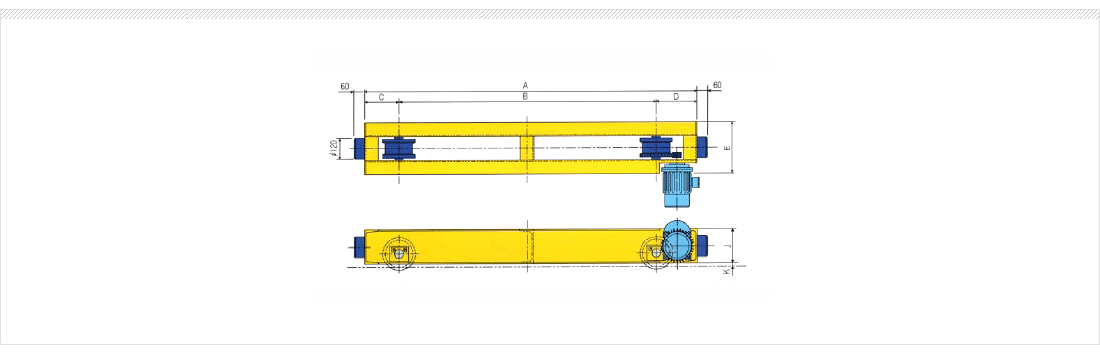

| Suspension Type | ||
|
| Wheel Dia | Travelling speed (m/min) | Motor (kw ×P) | A | B | C | D | E | J | Travelling Rail (l-Bean) | |
| ø125 | Low | 14 | 0.5Kw×6P | 1650 | 1250 | 120 | 280 | 320 | 150 | I 200 ×100 ×7t |
| High | 20 | 0.75Kw×4P | 1900 | 1500 | 345 | I 250 ×125 ×7.5t | ||||
| 2400 | 2000 | 370 | I 300 ×150 ×10t | |||||||
| ø160 | Low | 14 | 0.5Kw×6P | 2000 | 1500 | 150 | 300 | 360 | 200 | I 200 ×100 ×7t |
| High | 20 | 0.75Kw×4P | 2500 | 2000 | 386 | I 250 ×125 ×7.5t | ||||
| 3000 | 2500 | 386 | I 300 ×150 ×10t | |||||||

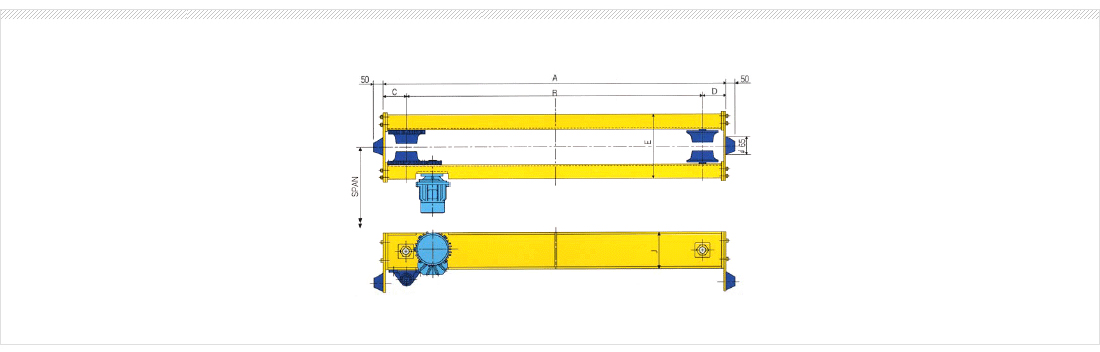

| OverHead Type | ||
|
| Wheel Dia | Travelling speed (m/min) | Motor (kw ×P) | Rai l (kg/m) | A | W.B | C | D | E | F | G | ||
| ø160 | High | 50(Hz) | 20 | 0.75×4 | 15.22 | 2060 | 1500 | 360 | 200 | 210 | 240 | 20 |
| 60(Hz) | 24 | 2560 | 2000 | |||||||||
| Low | 50(Hz) | 13 | 0.75×4 | 3060 | 2500 | |||||||
| 60(Hz) | 16 | 3560 | 3000 | |||||||||
| ø200 | High | 50(Hz) | 20 | 0.75×4 | 15.22 | 2120 | 1500 | 360 | 260 | 210 | 300 | 20 |
| 60(Hz) | 24 | 2620 | 2000 | |||||||||
| Low | 50(Hz) | 13 | 0.75×4 | 3120 | 2500 | |||||||
| 60(Hz) | 16 | 3620 | 3000 | |||||||||
| ø250 | High | 50(Hz) | 25 | 0.75×4 | 22.30 | 2170 | 1500 | 390 | 280 | 210 | 350 | 20 |
| 60(Hz) | 30 | 2670 | 2000 | |||||||||
| Low | 50(Hz) | 17 | 0.75×4 | 3170 | 2500 | |||||||
| 60(Hz) | 20 | 3670 | 3000 | |||||||||
| ø315 | High | 50(Hz) | 25 | 1.5×4 | 22.30 | 2220 | 1500 | 410 | 310 | 260 | 400 | 20 |
| 60(Hz) | 30 | 2720 | 2000 | |||||||||
| Low | 50(Hz) | 17 | 1×6 | 3220 | 2500 | |||||||
| 60(Hz) | 20 | 3720 | 3000 | |||||||||
